Product Specification

Brand Name: ANDDEAR

Use: Computer

Use: Universal

Use: Camera / Video Camera

Wireless Communication: IR

Wireless Communication: Wire Control

Wireless Communication: Bluetooth

Model Number: ANDDEAR-QS00170

Package: Yes

Description:

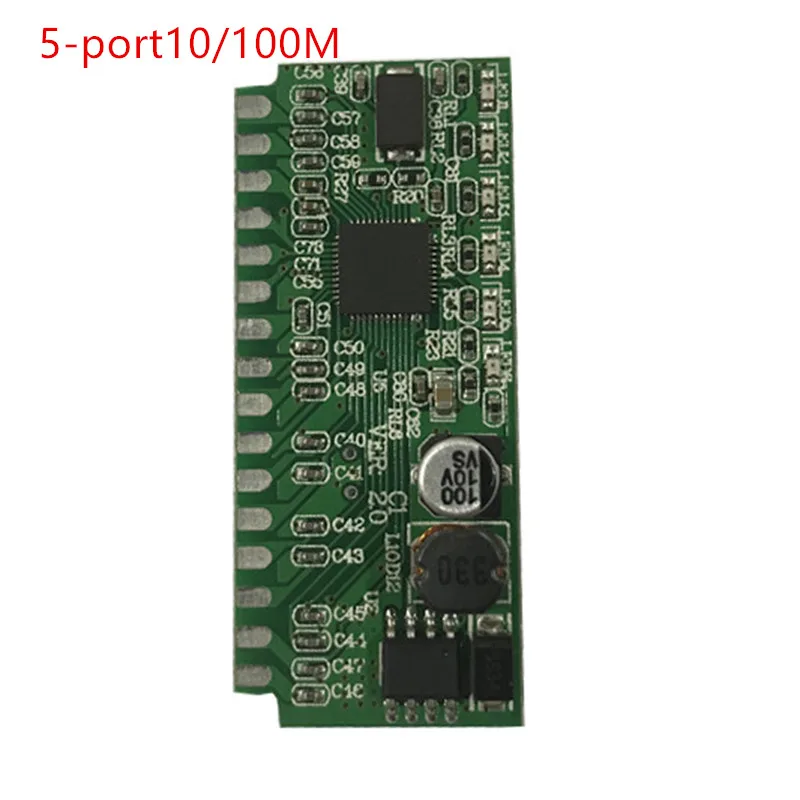

5-port10/100M  (Support OEM,if you have requirements for screw holes, the structure drawing is required,please leave a message at any time,here you can fix the screw hole position according to your requirements,feel free to leave a message for me)

Each ports supporting Auto-MDI/MDIX.
Supports storage-forward
Supports Full Duplex flow control mode and backpressure for half-duplex mode
Supports MAC address auto-learning and auto-aging
Each port provides independent bandwidth providing true non-blocking transmission
LED indicators for monitoring power,link,activity
Small size to reduce network cabling costs
Network protocol  IEEE802.3 10Base-T,IEEE802.3 10Base-TX
Network Media(Cable),10Base-T: UTP category 3, 4, 5 cable(maximum 100m),EIA/TIA-568 100Ù STP(maximum 100m),100Base-Tx:UTP category 5,5e cable (maximum 100m),EIA/TIA-568 100Ù STP(maximum 100m)
Swiching capacity  1G
LED Indicators:100Mbps Link/Act
Transfer Method:  Store-and-Forward
MAC Address Learning  Automatically learning, automatically Update
Frame Filtering and Forward Rate  10Mbps:14880pps,100Mbps:148800pps
upport IEEE 802.3x flow control for full duplex mode and backpressure for half duplex mode on all port
Non-blocking switching architecture that forward and filter packets at wire-speed for maximum throughput
Support MAC address auto-learning and auto-aging
LED indicators for monitoring power, link/activity
Mini cabling size design,PCBA size:50*45*1.6mm
External supply power adapter DC 5V/1A



001_0203

5-port10/100/1000M  (Support OEM,if you have requirements for screw holes, the structure drawing is required,please leave a message at any time,here you can fix the screw hole position according to your requirements,feel free to leave a message for me)

Complies with IEEE802.3,IEEE802.3u standards
5 10/100/1000Mbps Auto-Negotiation
Each ports supporting Auto-MDI/MDIX.
Supports storage-forward
Supports Full Duplex flow control mode and backpressure for half-duplex mode
Supports MAC address auto-learning and auto-aging
Each port provides independent bandwidth providing true non-blocking transmission
LED indicators for monitoring power,link,activity
Small size to reduce network cabling costs
Network protocol  IEEE802.3 10Base-T,IEEE802.3 10Base-TX
Network Media(Cable),10Base-T: UTP category 3,4,5 cable(maximum 100m),EIA/TIA-568 100Ù STP(maximum 100m),100Base-Tx:UTP category 5,5e cable (maximum 100m),EIA/TIA-568 100Ù STP(maximum 100m)
Swiching capacity  5G
LED Indicators:1000Mbps Link/Act
Transfer Method:Store-and-Forward
MAC Address Learning  Automatically learning,automatically Update
Frame Filtering and Forward Rate  10Mbps:14880pps,100Mbps:148800pps
upport IEEE 802.3x flow control for full duplex mode and backpressure for half duplex mode on all port
Non-blocking switching architecture that forward and filter packets at wire-speed for maximum throughput
Support MAC address auto-learning and auto-aging
LED indicators for monitoring power, link/activity
Mini cabling size design,PCBA size:50*45*1.6mm
External supply power adapter DC 5V/1A~12V1A
005_ 004_ 06
